Lower rear door panels · Sprinter 906
fromUS$ 19
Lower rear door panels · Sprinter 906

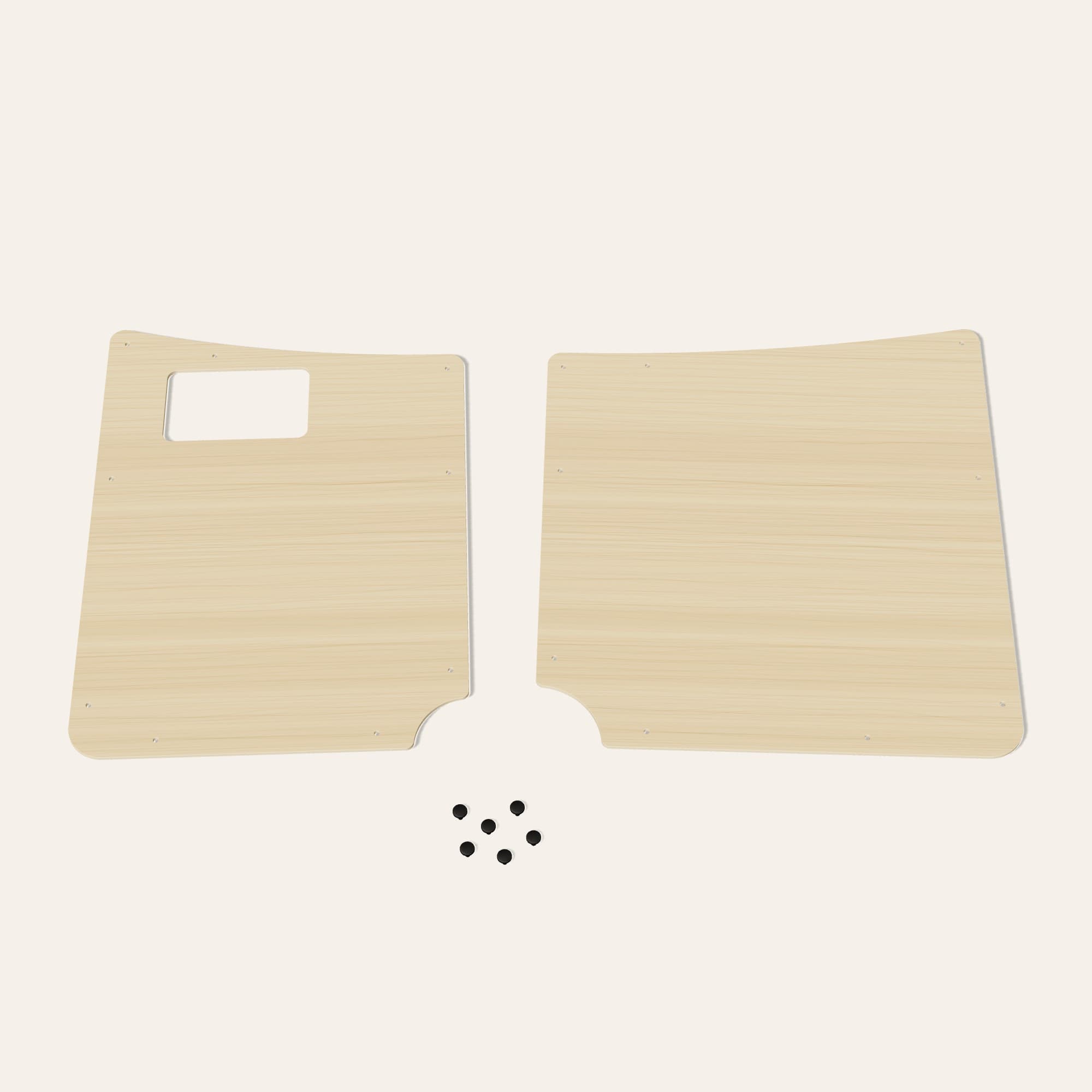

A pair of panels for the rear doors. Any CNC shop can cut them, and they mount with clips in the factory holes. Flat and Slotted versions included.
Exact fit for 2 vanssee which
Price of the file; your country's tax is added at checkout
Pay with an international card (Visa, Mastercard, Amex…); the payment is processed by Paddle.
- Guide
- PDF assembly manual
- Technical datasheet
- 1:1 template
This is a digital product: the result depends on the cutting and assembly done by you or your shop. License
New design, not verified yet
We haven't cut this one on a real van yet. Be the first: send us a photo of it installed and get 20% off your next design.
What it's like
Finish your Sprinter 906 rear doors in an afternoon. The pack includes shop-ready cutting files in two versions: Flat (6 mm, minimal) and Slotted (9 mm, with 43 slots for bungees, straps and organizers). The panels clip into the door's factory holes, so there is no drilling. Before cutting, you check the fit with the 1:1 template and calibrate the holes with the test piece, which is cut from the handle opening. Includes an illustrated guide, technical sheet, workshop sheet and 3D models.
Specifications
| Code | P01 |
|---|---|
| Outer dimensions | 610 × 685 mm |
| Sheet thickness | 6 mm or 9 mm |
| Sheets needed | 1 × 1160 × 715 mm, recorte |
| Recommended material | Guatambú plywood 6 o 9 mm |
| Router bit | Straight 6 mm · 2 flutes |
| Machine time | 10 min |
| Assembly time | 15 min |
| Difficulty | Easy |
| Fixing | 18 clips push-pin de 8 mm por par (o remaches roscados M6) |
| Exact fit for | Sprinter 906 |
| Adaptable to | — |
| Not compatible with | Sprinter anterior a agosto de 2012 · Sprinter nueva (907 / VS30, desde fines de 2019) · chasis cabina · techo normal, combi y minibús sin verificar |
Files in the pack
Everything comes in a 4.2 MB zip: 7 files, each also downloadable on its own.
- Short guideEmpezá acá · 937 KBpdf
- Short guideVista previa gratis (8 págs.) · 1.7 MBView for free
- Short guideHoja para el taller · 251 KBpdf
- PDF assembly manualManual de armado (12 págs.) · 1.4 MBpdf
- Technical datasheetFicha técnica · 572 KBpdf
- 1:1 template to check the fitPlantilla 1:1 · A0 · 37 KBpdf
- 1:1 template to check the fitPlantilla 1:1 · mosaico A4 · 414 KBpdf
Questions about this design
Do I need a CNC machine?
No. You buy the files and any workshop with a wood CNC router can cut them. The pack includes a one-page workshop sheet with every instruction.
How do I know it fits my Sprinter?
It fits the Sprinter 906 (NCV3) panel van: 2006–2018 in Europe, 2007–2018 in the US, and Argentine-built vans from August 2012 to 2019. It does not fit the current Sprinter (907/VS30). If in doubt, the 1:1 template confirms the fit before cutting.
Does it fit every length?
Yes: short (3250), standard (3665) and long (4325 mm) wheelbase. With or without rear windows, 180° or 270° doors.
Do I need to drill the door?
No. The panels use the door's factory holes with 8 mm push-pin clips. For a stiffer fit, the guide explains the rivet-nut option.
Which material should I use?
6 mm plywood for the Flat version and 9 mm for the Slotted one (we use guatambú plywood). Black film-faced plywood also looks great.
How do I get the files?
Instant download after payment: one .zip with every document and file, both versions included.
